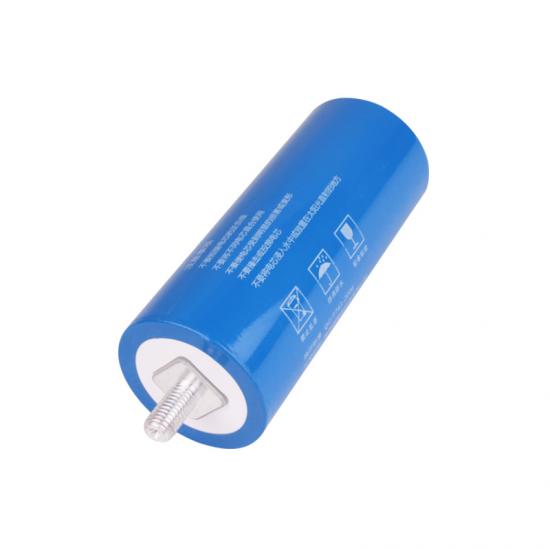

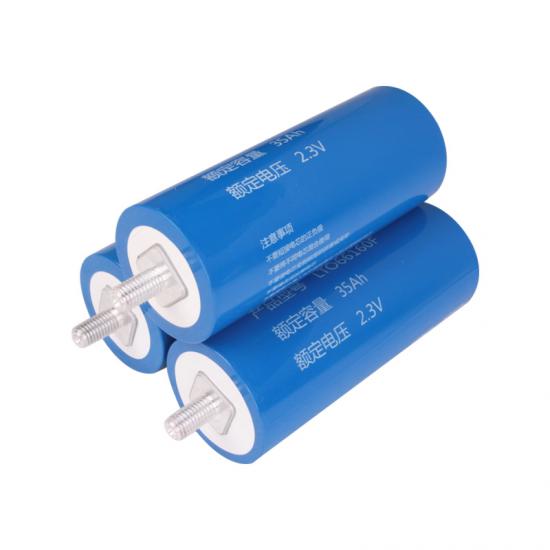

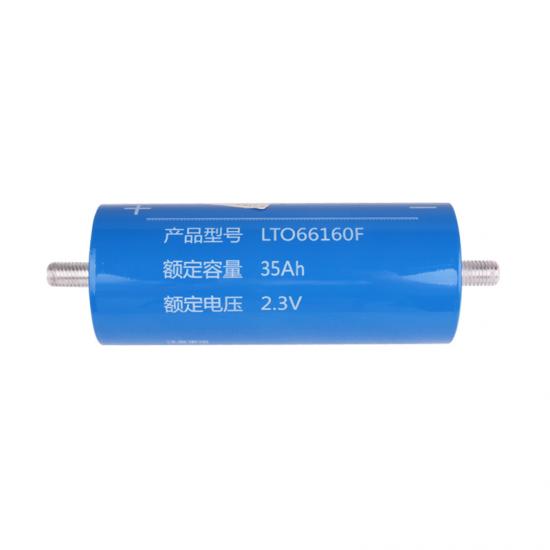

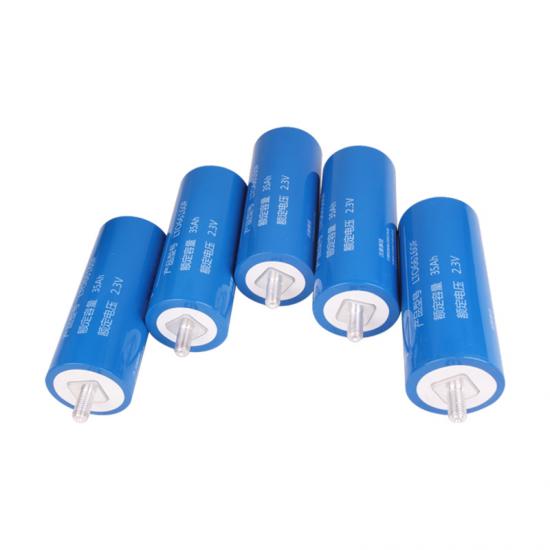

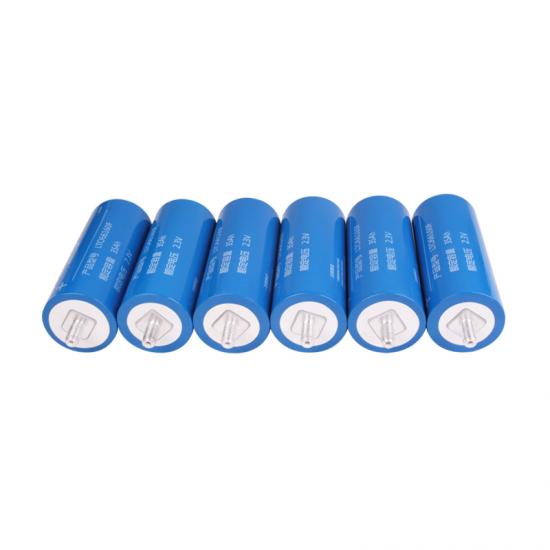

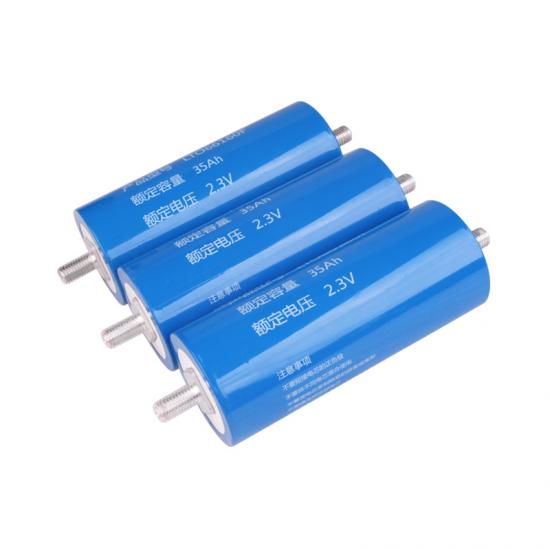

YINLONG Rechargeable Lithium Titanate Battery Lto CELL 35Ah LTO Battery Solar System 2.3V 35Ah LTO Battery

YINLONG Rechargeable Lithium Titanate Battery Lto CELL 35Ah LTO Battery Solar System 2.3V 35Ah LTO Battery

Nominal Voltage:2.3V

Nominal capacity:35Ah

Working voltage:1.5V~2.9V

AC impedance resistance(1khz):≤1mΩ

Max. pulse charge / discharge current: 300A

Dimension: 202mm(L)*66(W)mm

Weight: 1.18kg
View full details

Product Details

Highlights

Compared with traditional AGM/lead acid batteries, LiFePO4 battery/ Lithium iron phosphate batteries are:

  • Higher safety and stability：non-toxic, non-polluting, no rare earth metals, no explosion, no fire.
  • Long service life：10 times lifespan extended to 20000-30000 cycles.
  • 1/4 lighter than lead-acid batteries.
  • The LFP battery can work in a wide temperature range from -20 to +75°C
  • No memory effect. Can be charged on demand without loss of capacity.
  • Suitable for RV, ship, home storage, telecommunication (base station battery)

Application

  • Energy Storage
  • Solar-Wind Power System / City Grid (On/Off) /
  • Community and Family
  • Back-up System and UPS
  • Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
    Other Applications
  • Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
  • RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
  • LED Backup / Engine Starting Battery,etc.

Electric Performance Curve

Safety Warnings

  • Do not immerse the battery in water and keep it dry when not in use.

  • Do not knock, throw or affect the battery near a fire source or under extremely hot conditions.

  • Please charge according to the charging requirements.

  • Do not reverse thepositive (+) and negative (-) terminals.

  • Do not short-circuit the battery by connecting wires or other metal objects to the positive (+) and negative (-) terminals.

  • Do not directly weld the battery terminals.
