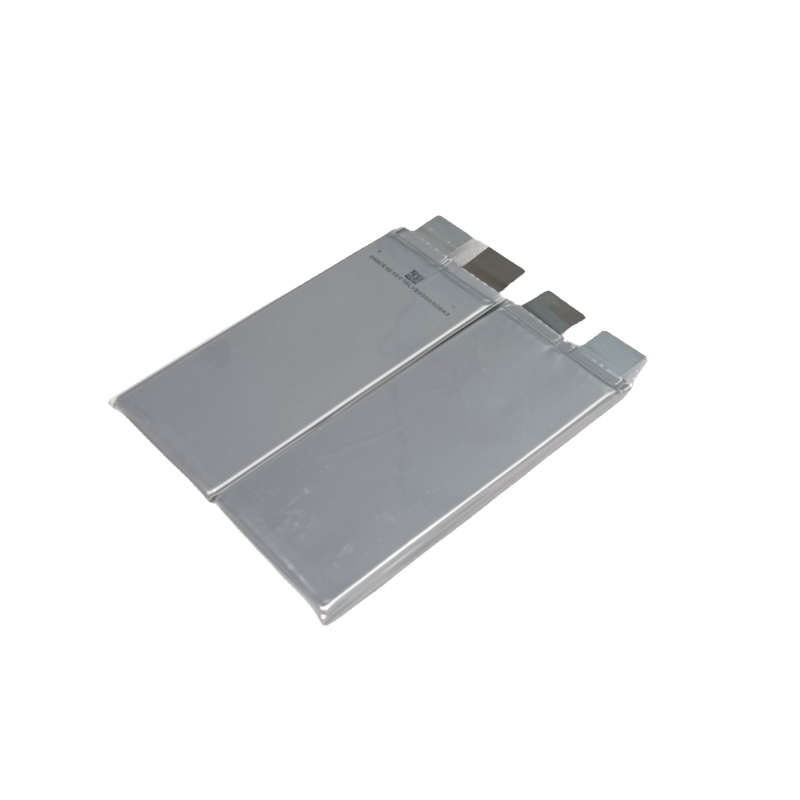

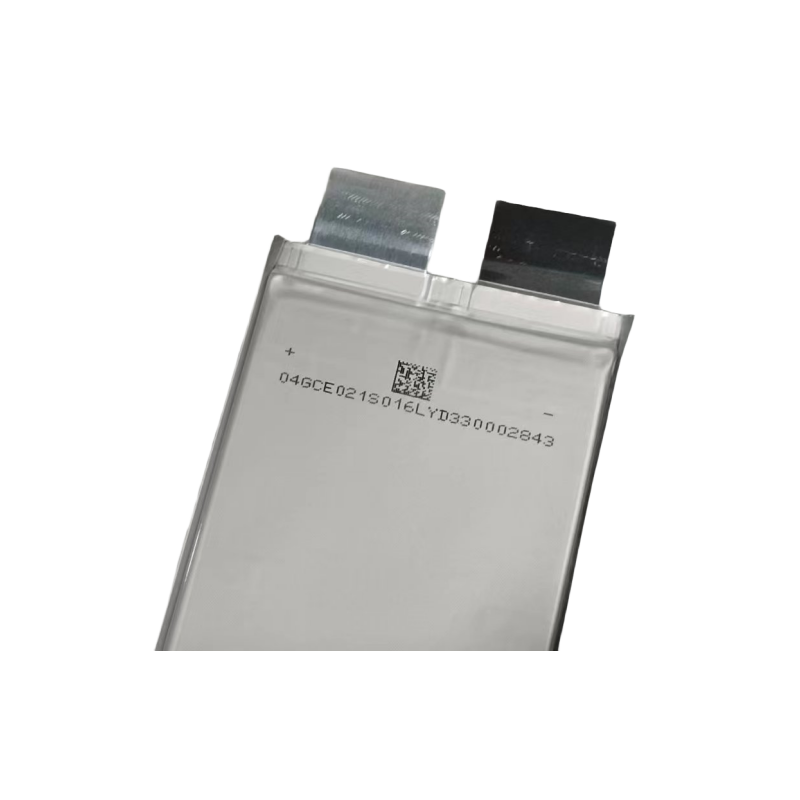

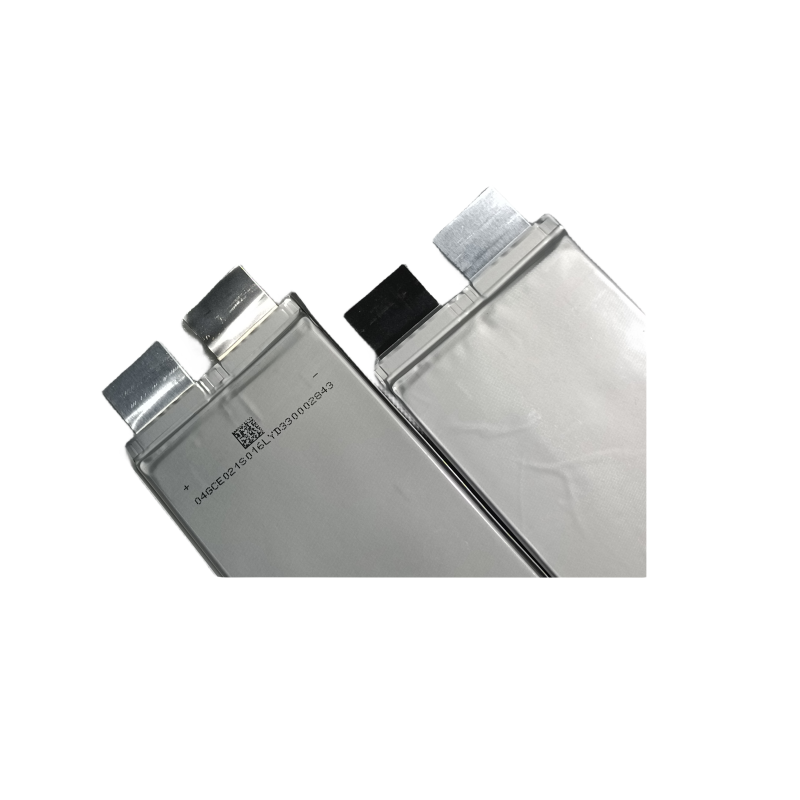

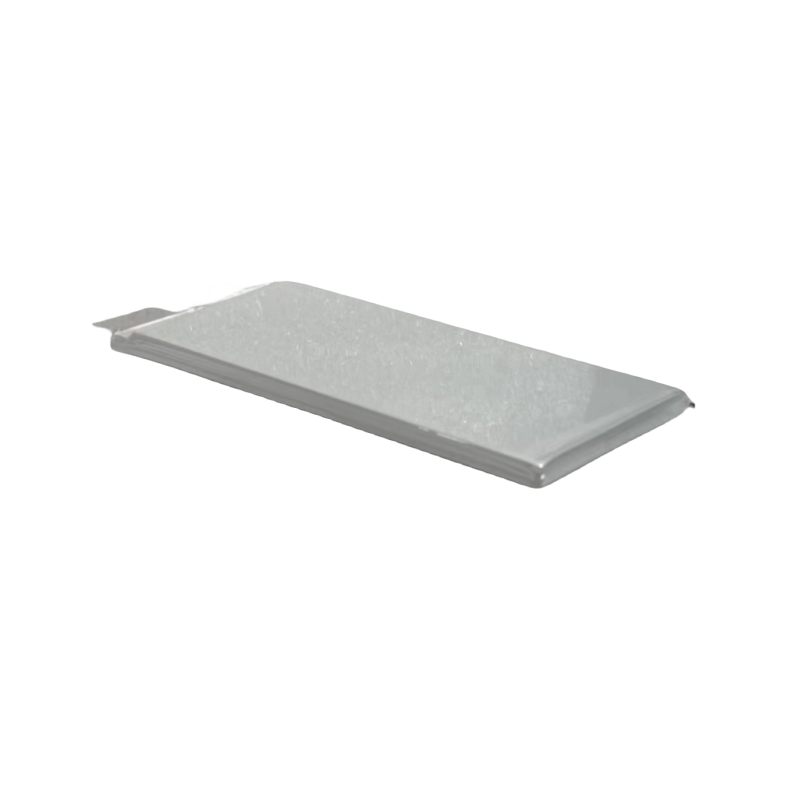

Solid State Battery Pouch Polymer 3.7V 16Ah Rechargeable Battery Cell For UAV FPV Drone Application

Solid State Battery Pouch Polymer 3.7V 16Ah Rechargeable Battery Cell For UAV FPV Drone Application

Battery Details：

Nominal Voltage: 3.7V

Nominal Capacity: 16Ah

Standard Charge Current:0.2C-0.5C

Max. Charge/Discharge Current:2C/5C

Dimension: 7.8*74*172mm

Weight:226g


Application：

Car Audio，Motorcycle Starter，Car Starter

Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.



Packing & Delivery：

Use high hardness custom sponge to strengthen the battery* 5 layers of dangerous goods export corrugated carton
* Positive and negative paste insulation tape
* We will label test data on each cell before delivery
* If customer have requirement, we can provide Wooden Packing for shipping.



Our Service：

We provide all type of cell LFP/NCM/LTO/SIB, all shape you need：Prismatic, Pouch, Cylindrical.

  1. One-on-one VIP service, from order placement to delivery to after-sales, the whole process is connected with the same salesperson, making communication easy.

  2. The company is close to the factory, and customers are always welcome to ask for pictures and videos, and safety is guaranteed.

  3. Enjoy customized services, can undertake projects, and help customers customize new products.

  4. The professional technical and sales teams recommend suitable solutions, from quality to price, so that customers have no worries.

View full details

Product Details

Solid-state batteries are potentially safer, with higher energy densities. Challenges to widespread adoption include energy andpower density,durability,material costs, sensitivity, and stability.

The solid electrolyte in solid-state batteries has a higher melting point and is less likely to burn, making it safer. In high-temperature environments, traditional lithium batteries are prone to dangerous situations such as burning or explosion.

Safety Warnings

  • Do not immerse the battery in water and keep it dry when not in use.

  • Do not knock, throw or affect the battery near a fire source or under extremely hot conditions.

  • Please charge according to the charging requirements.

  • Do not reverse thepositive (+) and negative (-) terminals.

  • Do not short-circuit the battery by connecting wires or other metal objects to the positive (+) and negative (-) terminals.

  • Do not directly weld the battery terminals.
