OSN Power

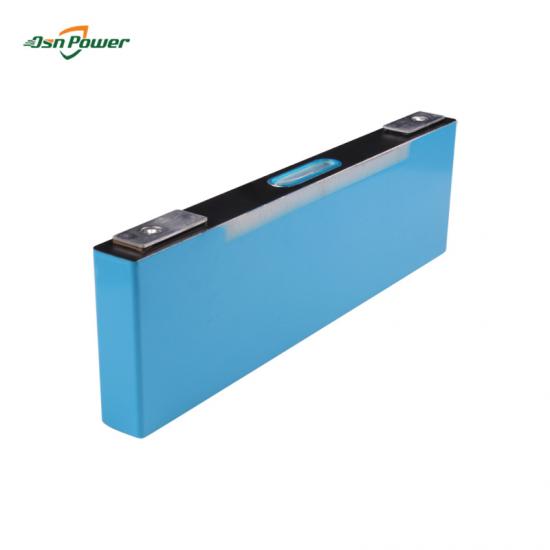

Lithium Battery Cell 117ah 3.7v Lithium Prismatic Battery Cells NCM For Solar Storage

Lithium Battery Cell 117ah 3.7v Lithium Prismatic Battery Cells NCM For Solar Storage

  • Nominal Voltage:3.7V
  • Nominal capacity:117Ah
  • Working voltage:2.5V~4.2V
  • AC impedance resistance(1khz):≤1mΩ
  • Max. pulse charge / discharge current: 234A

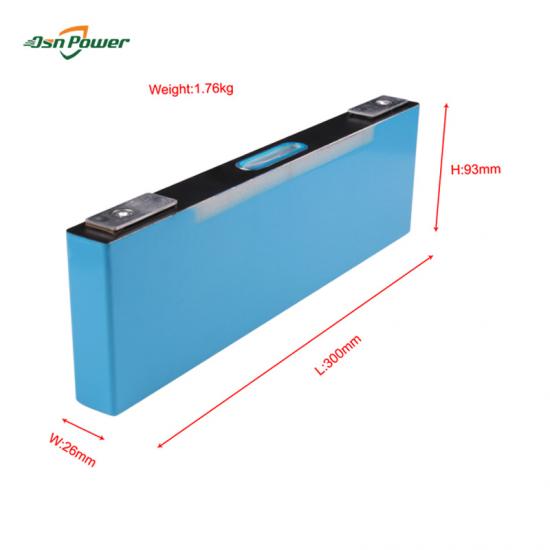

  • Dimension: 300(L)*26(W)*93(H)mm
  • Weight: 1.67kg(No accessories)
View full details

Product Details

Highlights

Compared with traditional AGM/lead acid batteries, LiFePO4 battery/ Lithium iron phosphate batteries are:

  • Higher safety and stability：non-toxic, non-polluting, no rare earth metals, no explosion, no fire.
  • Long service life：10 times lifespan extended to 2000-4500 cycles.
  • 1/4 lighter than lead-acid batteries.
  • The LFP battery can work in a wide temperature range from -20 to +75°C
  • No memory effect. Can be charged on demand without loss of capacity.
  • Suitable for RV, ship, home storage, telecommunication (base station battery)

Application

  • Energy Storage
  • --Solar-Wind Power System / City Grid (On/Off) / Community and Family
  • Back-up System and UPS
  • --Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
  • Other Applications
  • --Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
  • --RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
  • --LED Backup / Engine Starting Battery,etc.

Electric Performance Curve

Safety Warnings

  • Do not immerse the battery in water and keep it dry when not in use.

  • Do not knock, throw or affect the battery near a fire source or under extremely hot conditions.

  • Please charge according to the charging requirements.

  • Do not reverse thepositive (+) and negative (-) terminals.

  • Do not short-circuit the battery by connecting wires or other metal objects to the positive (+) and negative (-) terminals.

  • Do not directly weld the battery terminals.
