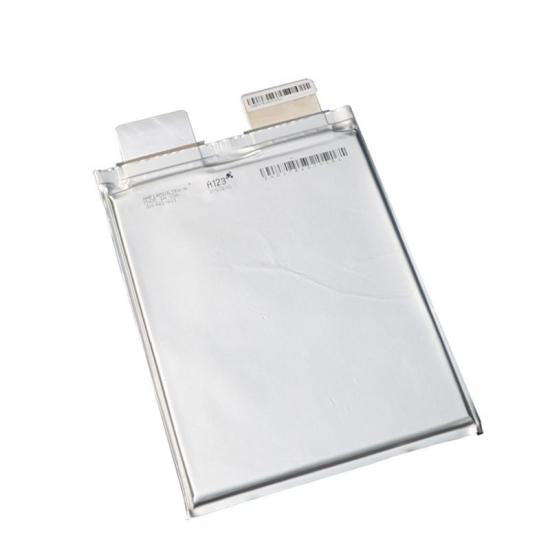

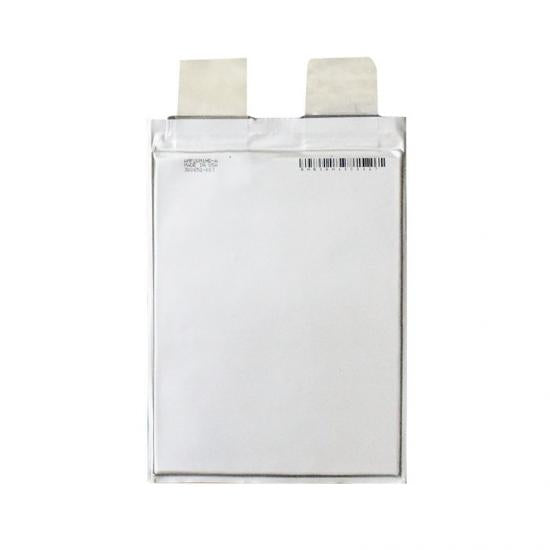

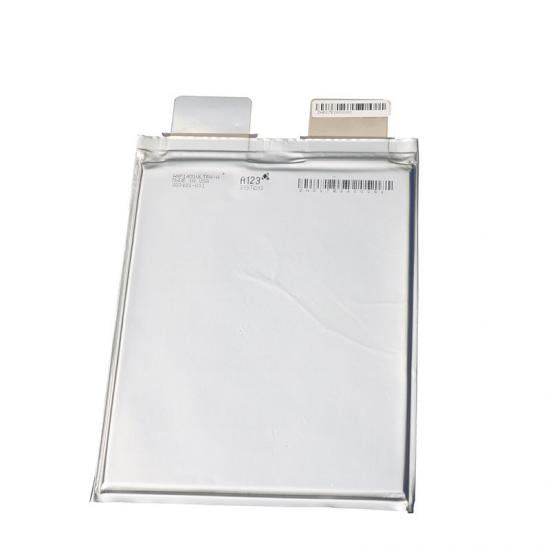

Deep Cycle Lifepo4 20ah Li-Polymer Battery Lifepo4 A123 20ah 3.2V Pouch Cell
Deep Cycle Lifepo4 20ah Li-Polymer Battery Lifepo4 A123 20ah 3.2V Pouch Cell
LiFePO4 batteries are highly safe, have no risk of explosion and fire, and are environmentally friendly, non-toxic and non-polluting. No memory effect - the battery can be charged in any state of discharge, giving you peace of mind.
-
Nominal Voltage:3.2V
-
Nominal capacity:20Ah
-
Working voltage:2.0V~3.9V
-
AC impedance resistance(1khz):≤1.3mΩ
-
Max. pulse charge / discharge current: 2C (30S)
-

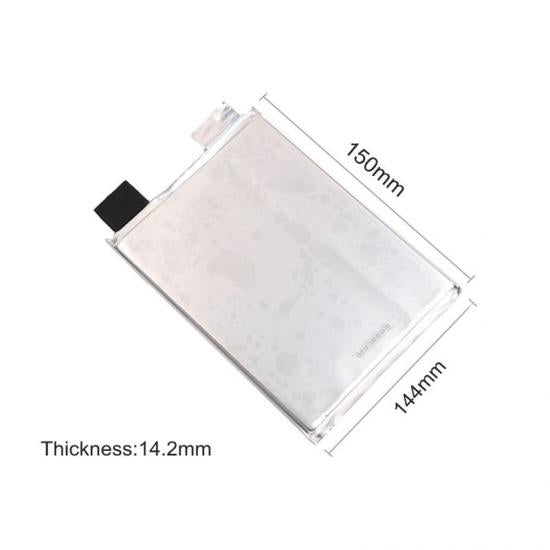

Dimension: 150(L)*144(W)*14.2(T)mm
-
Weight: 0.208kg(No accessories)
Share
![Deep Cycle Lifepo4 20ah Li-Polymer Battery Lifepo4 A123 20ah 3.2V Pouch Cell](http://osnpower.com/cdn/shop/files/f24a4f603c7add2bf8d790b10f55c8ac_medium_f2feff99-3c75-4698-89d3-59643fbfbca3.jpg?v=1706071925&width=1445)
![Deep Cycle Lifepo4 20ah Li-Polymer Battery Lifepo4 A123 20ah 3.2V Pouch Cell](http://osnpower.com/cdn/shop/files/a9c8fd7a8e70b6fe597fd54322fa77c0_medium_ce739f30-3949-4ccd-9459-97aeba1168a5.jpg?v=1706071924&width=1445)
![Deep Cycle Lifepo4 20ah Li-Polymer Battery Lifepo4 A123 20ah 3.2V Pouch Cell](http://osnpower.com/cdn/shop/files/18cf9d76628e2dd11c8c94de4a86808b_medium_0d26ee97-d61b-45e0-a6d9-fe762373e10d.jpg?v=1706071924&width=1445)
![Deep Cycle Lifepo4 20ah Li-Polymer Battery Lifepo4 A123 20ah 3.2V Pouch Cell](http://osnpower.com/cdn/shop/files/7540099554bdb14779b60f4ac6c1de4b_medium_c32e8456-ef8e-44ca-aba6-b864f16458ab.jpg?v=1706071925&width=1445)
Product Details
Highlights
Compared with traditional AGM/lead acid batteries, LiFePO4 battery/ Lithium iron phosphate batteries are:
- Higher safety and stability:non-toxic, non-polluting, no rare earth metals, no explosion, no fire.
- Long service life:10 times lifespan extended to 2000-4500 cycles.
- 1/4 lighter than lead-acid batteries.
- The LFP battery can work in a wide temperature range from -20 to +75°C
- No memory effect. Can be charged on demand without loss of capacity.
- Suitable for RV, ship, home storage, telecommunication (base station battery)
Application
- Energy Storage
- --Solar-Wind Power System / City Grid (On/Off) / Community and Family
- Back-up System and UPS
- --Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
- Other Applications
- --Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
- --RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
- --LED Backup / Engine Starting Battery,etc.
Electric Performance Curve
Safety Warnings
-
Do not immerse the battery in water and keep it dry when not in use.
-
Do not knock, throw or affect the battery near a fire source or under extremely hot conditions.
-
Please charge according to the charging requirements.
-
Do not reverse thepositive (+) and negative (-) terminals.
-
Do not short-circuit the battery by connecting wires or other metal objects to the positive (+) and negative (-) terminals.
-
Do not directly weld the battery terminals.
