45AH 3.2V Solid State Battery Cell High Energy And High-Density Solid-State Battery For UAV FPV Drone Application

45AH 3.2V Solid State Battery Cell High Energy And High-Density Solid-State Battery For UAV FPV Drone Application

Battery Details：

No.
Items
Specifications
1
Nominal Voltage
3.2V
2
Nominal Capacity
45Ah
3
Standard Charge Current
0.2C-0.5C rate
4
Max. Charge Current
2C
5
Max Continuous Discharge current
5C-10C
6
Charge Cut-off Voltage
4.2V
7
Discharge Cut-off Voltage
2.75V
8
Inner Resistance(Impedance)
≤10mΩ (At 0.2C rate)
9
Weight
965g
10
Dimensions
12*118*359mm
11
Operating Temperature
Charging: 0°C ~45°C
Discharging: -20°C ~ 55°C
12
Storage Temperature/Humidity
Temperature: -20°C ~ +45°C
Humidity:65%±20%RH
(optimal store temperature of 23 ± 5°C for long term storage)


About Solid State Battery：

1. Long endurance time, which can increase the use time of UAV by 20%-35%
2. High energy density, 30%-35% higher than ordinary lithium-ion batteries, 20% higher than high-voltage lithium batteries
3. High discharge rate, 10C discharge, about 5 times higher than traditional lithium-ion batteries
4. Suitable for most UAVs or other electrical equipment that requires long endurance time: Agriculture drone, Industrial multicopter, and VTOL, Robots, Surface ship, etc.

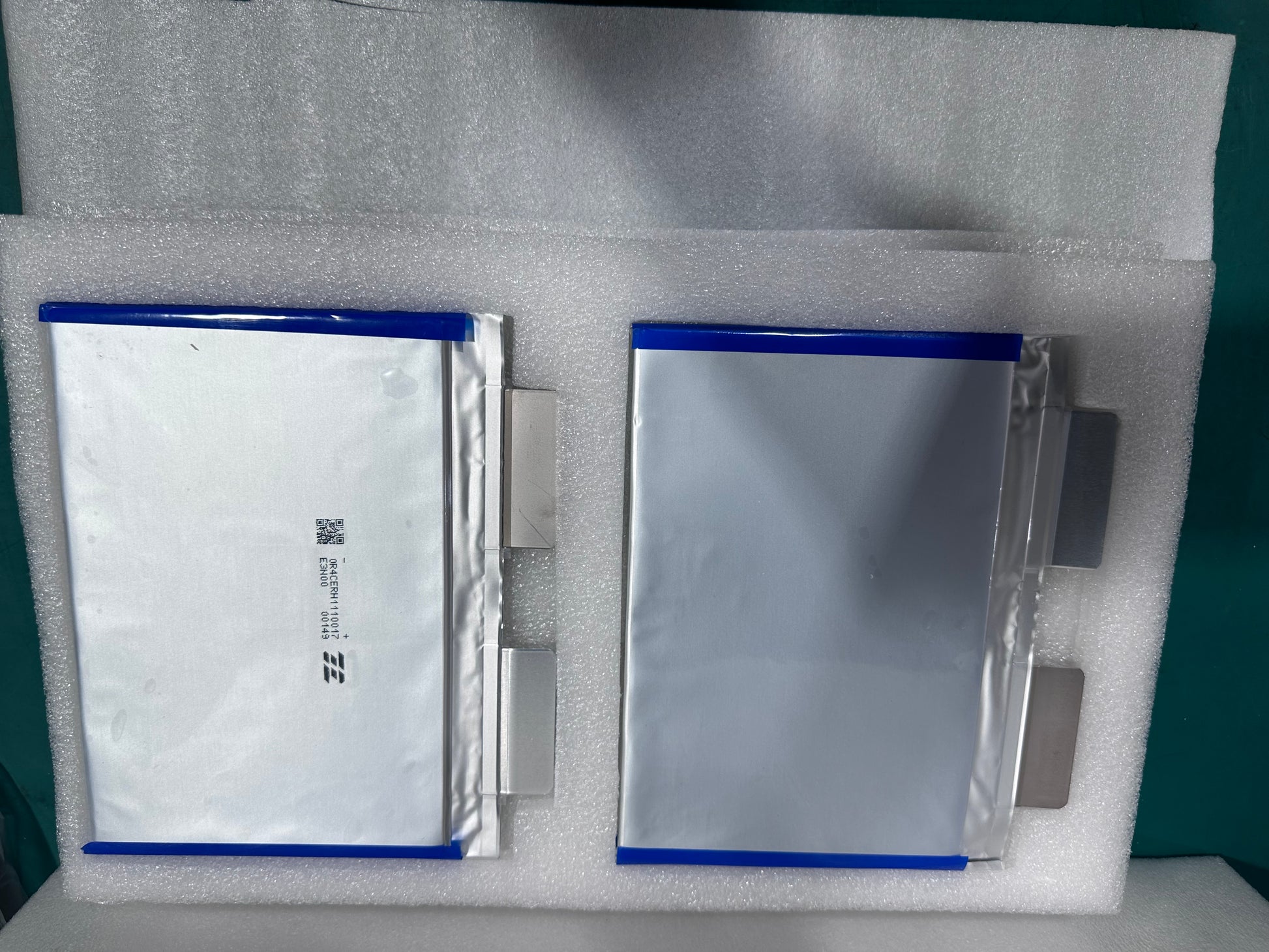

Packing & Delivery：

Use high hardness custom sponge to strengthen the battery* 5 layers of dangerous goods export corrugated carton
* Positive and negative paste insulation tape
* We will label test data on each cell before delivery
* If customer have requirement, we can provide Wooden Packing for shipping.



Our Service：

We provide all type of cell LFP/NCM/LTO/SIB, all shape you need：Prismatic, Pouch, Cylindrical.

  1. One-on-one VIP service, from order placement to delivery to after-sales, the whole process is connected with the same salesperson, making communication easy.

  2. The company is close to the factory, and customers are always welcome to ask for pictures and videos, and safety is guaranteed.

  3. Enjoy customized services, can undertake projects, and help customers customize new products.

  4. The professional technical and sales teams recommend suitable solutions, from quality to price, so that customers have no worries.

View full details

Product Details

Safety Warnings

  • Do not immerse the battery in water and keep it dry when not in use.

  • Do not knock, throw or affect the battery near a fire source or under extremely hot conditions.

  • Please charge according to the charging requirements.

  • Do not reverse thepositive (+) and negative (-) terminals.

  • Do not short-circuit the battery by connecting wires or other metal objects to the positive (+) and negative (-) terminals.

  • Do not directly weld the battery terminals.
